KOSTAL INVEOR MC1 frequency inverter

INVEOR MC1 – Flexible. Simple. Economical. Powerful.

Do you sometimes wish you had more freedom and less dependency when putting together your drive system? Would you like to be able to combine a frequency inverter with any motor you want, thereby saving costs and perfectly adapting your drive system to your application?
Our answer: a frequency inverter that combines with any motor to form a high-performance system, regardless of the motor technology, motor manufacturer or performance class of the motor.

KOSTAL INVEOR MC1 frequency inverter

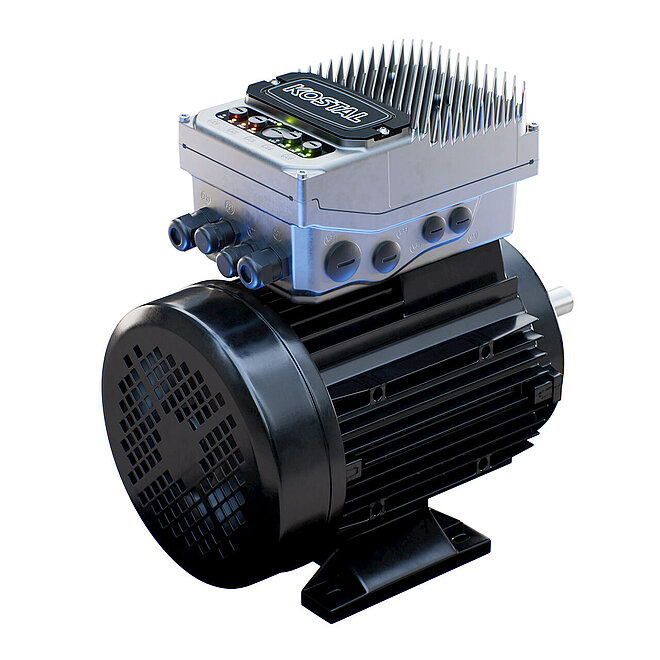

The KOSTAL INVEOR MC1 frequency inverter is the latest addition to our INVEOR family: a motor- or wall-mounted 3-phase and 1-phase frequency inverter in two sizes with up to 4 kW. With a robust and vibration-resistant housing, it complies with protection class IP65. A micro SD card slot and status LEDs make it particularly clear and easy to use.

The option of simply plugging in and configuring certain options at the customer's site reduces storage requirements and the complexity of the devices.

Power range
Grid feed-in
Grid feed-in

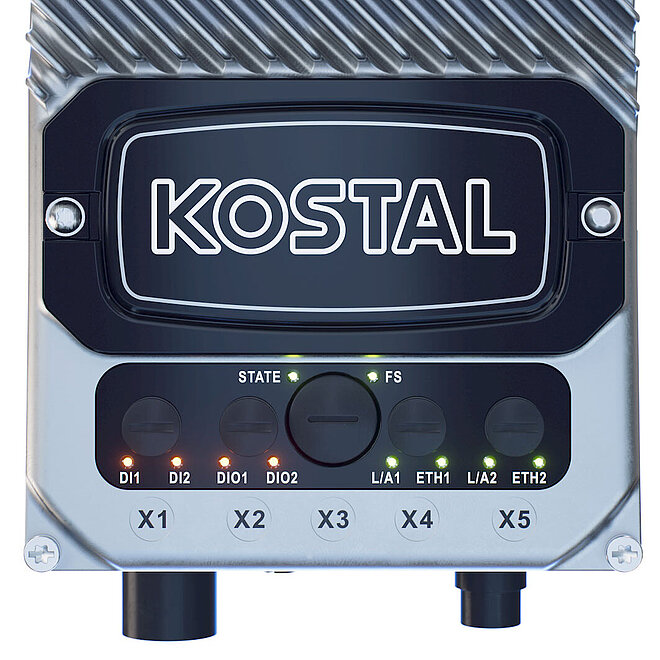

Visual feedback
microSD card slot

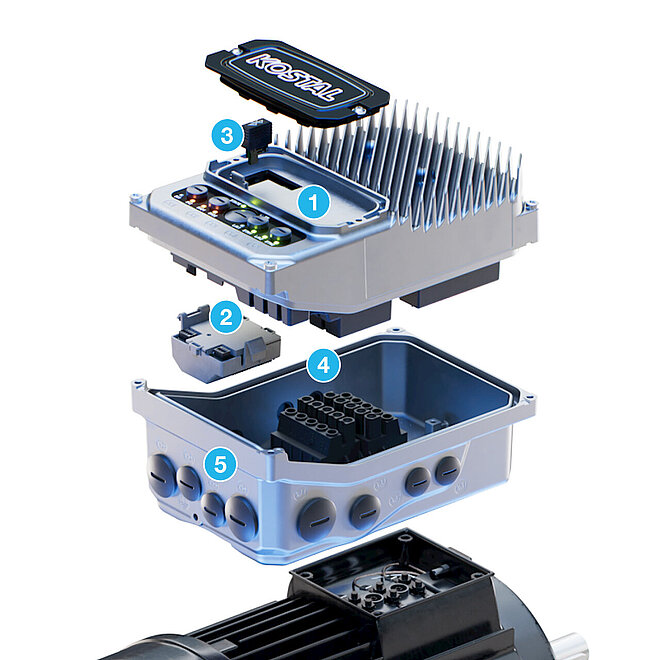

INVEOR MC1 customisable options

The MC1 offers a wide range of customisation options to meet your individual application requirements.

  1. The housing option offers a choice of IO expansion via M-12 connectors. PROFIsafe/FSoE communication* can also be added as an option. A display* can also be installed by you if required, either at the time of purchase or at a later date.
  2. The plug-in options allow you to add either an STO function (functional safety) or a relay.
  3. If you want particularly convenient operation via tablet or mobile phone, the INVEOR MC1 can also be equipped with a Bluetooth stick and controlled directly via the associated app.
  4. If it is not sufficient to feed the energy back into the motor during occasional braking, an internal PTC braking resistor can be used as an option.
  5. Customised cabling possible with cable glands, Phoenix Quickon, MQ15 or M12

*in preparation

The INVEOR MC1 frequency inverter’s control method

Imagine a frequency inverter that controls any type of motor – regardless of manufacturer, technology or efficiency class.

With the INVEOR MC1, you can do just that. It supports all synchronous reluctance, synchronous and asynchronous motors, giving you maximum flexibility and independence.

The INVEOR MC1 frequency inverter uses the innovative pulse injection method. This allows the rotor position to be determined without vulnerable components such as encoder sensors. This improves the robustness and durability of the system while achieving maximum energy efficiency.

Sensorless
Maximum efficiency
All motor types
Dynamics

Performance parameters of the INVEOR MC1

  • 3~ AC: 0.55 – 4.0kW / 1~ AC: 0.55 – 1.5kW
  • 250% overload: Use 250% overload for up to 3 seconds if required. Or 200% for a full 60 seconds.
  • Speed control range of 1:200: Control your three-phase motors precisely and accurately – thanks to an optimised speed control range and maximum control quality.
  • Optimised torque control: Maintain constant torque in all applications that require it (e.g. extruder screws or winding applications).
  • Control of all motor types: Control the speed of all your motors. Even synchronous and synchronous reluctance motors in efficiency class IE5.
Power range
Grid feed-in
Grid feed-in
Speed control range
Overload

Further INVEOR MC1 equipment features

The INVEOR MC1 has extensive signal inputs and outputs as well as an integrated, flexibly configurable holding brake control.

The direct connection to the motor also makes it possible to monitor vibrations from the drive and intervene in the event of irregularities. This integrated vibration monitoring is your entry point into predictive maintenance.

The MC1 also features a positioning function, which is mapped purely via the innovative control procedure and completely dispenses with external encoders.

From automatic motor detection (SelfCom) to safety functions such as STO and individual customisation options via the integrated soft PLC, the INVEOR MC1 leaves nothing to be desired. With the SelfCom function, the motor is measured at the touch of a button and provides high-quality control parameters, eliminating the need for time-consuming calibration on the test bench.

SelfCom
STO
Soft PLC
Sensorless position
Bidirectional IOs

INVEOR MC1 frequency inverter communication

The KOSTAL INVEOR MC1 frequency inverter offers the widest range of fieldbus options and interfaces.

  • CANopen, PROFINET, EtherCAT (optional): Take advantage of our wide range of application ladder cards. Equip the INVEOR MP frequency inverter with the interfaces that suit your needs.
  • MQTT protocol: Make your motors and applications fit for Industry 4.0 by transferring diagnostic data directly to your cloud and accessing it from anywhere.
  • Bluetooth (optional): Control the INVEOR MC1 frequency inverter via Bluetooth if desired. Either permanently installed or as a plug-in solution.

Specialised variants of the INVEOR MC1 frequency inverter

The Inveor MC1 offers a range of preconfigured special variants that are tailored to the requirements of specific applications.

For example, there are variants that are particularly suitable for logistics applications, as well as for general industrial applications or basic applications.

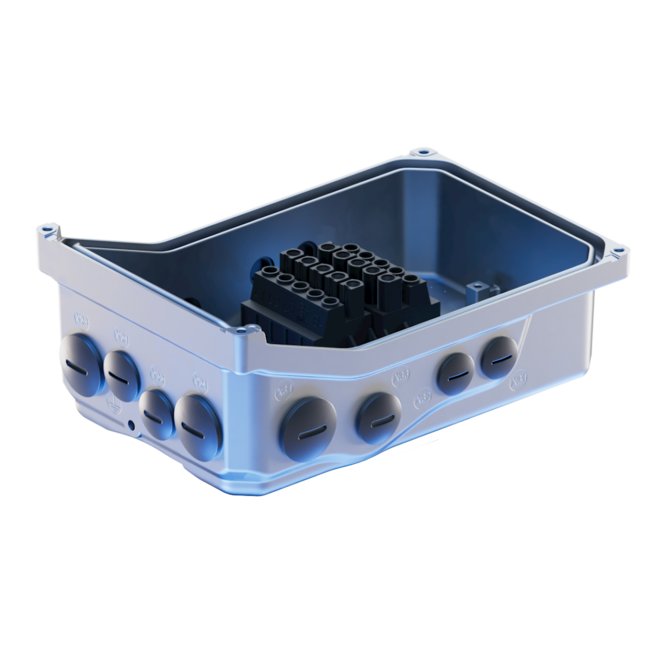

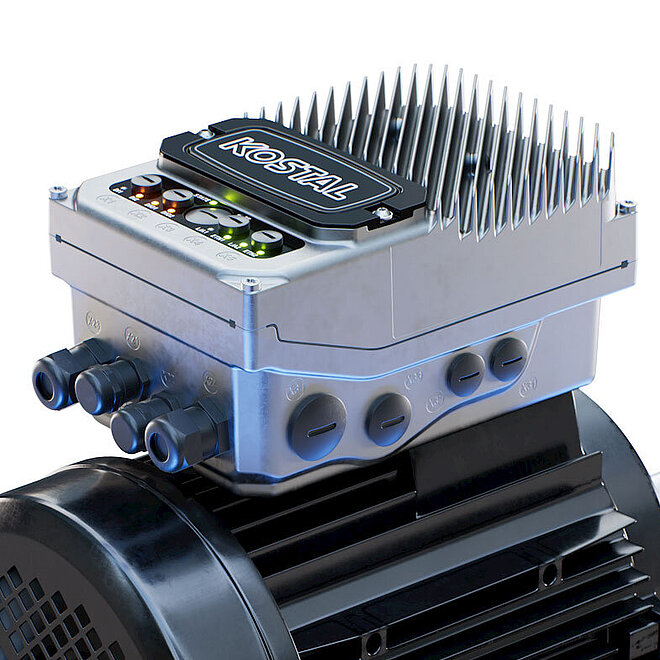

Mechanical integration options for the INVEOR MC1

Universal mounting option

  • Can be mounted on the motor or on the wall
  • Suitable motor adaptation for every motor manufacturer

Flexible connection options

  • Cable glands possible on three sides
  • Optional plugs for signal and power

Variable frequency drives for all your requirements

Be safe

Improve protection for employees and production. Through the safety function integrated in the application board.

Comply with guidelines

Meet the requirements of the Ecodesign Directive. Thanks to the smart drive controllers of the INVEOR MC1.

Making better use of energy

Control motors up to efficiency class IE5. For even better energy use in the company.

The KOSTAL INVEOR product family

Motor-mounted variable frequency drives for all situations. Do you need a 1-phase drive controller for more mobility? Or a modular 3-phase variable frequency drive of up to 30 kW that helps you reduce your energy consumption at the same time? Whatever you need: Discover the decentralised drive controllers of our KOSTAL INVEOR product family today.

INVEOR M

Our robust classic. Also available as a single-phase variant if you need flexibility with the power source.

To the INVEOR M

INVEOR MP Modular

Our modular variable frequency drive with the option of integrating your own application boards and electronics.

To the INVEOR MP Modular

INVEOR MPP

Our performance device for pump applications with pump display, smart sensor, bidirectional IOs and temperature sensor input. Available in four sizes up to 30 kW.

To the INVEOR MPP

Webinars on our KOSTAL INVEOR variable frequency drives

Learn more about our KOSTAL INVEOR variable frequency drives in our webinars. We will show you the operating concepts, the Bluetooth application and also how efficient the encoderless control of our pulse injection process is.

To the webinars

Do you have any questions about the KOSTAL INVEOR MP variable frequency drive?

Then complete our contact form or give us a call. We will answer your questions and help you to implement the right solution in your company.
